SSH: The Secure Communication Backbone You Use Every Day But May Not Truly Understand

• Understand the historical context of SSH — how Telnet's security flaws gave birth to encrypted communication
• Master SSH essentials: remote connections, file transfer (SCP/SFTP), and port forwarding
• Deeply understand SSH's three-layer encryption system: symmetric encryption, asymmetric encryption, and MAC
• Grasp how public key authentication works and why it's more secure than passwords

• Basic understanding of the client-server communication model
• A rough idea of public/private key concepts (refer to the TLS article in this series)
• Having a server to SSH into helps, but isn't required

Refer to the earlier article in this series:

You've just joined a new company. The ops engineer sends you a message:

"Your dev machine is at 10.0.1.55, username 'dev'. Just SSH in."

You open a terminal, type ssh dev@10.0.1.55, enter your password, and within seconds — you're "sitting at" that remote machine. You can ls, vim, npm run dev as if it's right there on your desk.

But have you ever stopped to wonder: how did your password travel safely across the company network (or even the public internet) to reach that server? If someone intercepted your packets mid-flight, could they read your password? And how does the server confirm that you are, in fact, you?

That's everything SSH was built to solve. It's not just another "tool" sitting on top of the stack — it's the final piece of this networking series, the secure bridge between you and any remote machine.

Back in the 1980s and 90s, the standard way to log in remotely was Telnet. You could connect to a remote host, run commands, and feel like you were sitting right in front of it.

But Telnet had one fatal flaw: everything was sent in plaintext. Your username, password, every command you typed — all traveled across the network as unencrypted, readable text.

Think of it like writing your house key pattern on a postcard and mailing it. Anyone who handles that postcard can see it and make a copy. Worse, an attacker could not only read your communication — they could tamper with it. This is known as a man-in-the-middle attack.

Today, with cybersecurity awareness at an all-time high, these design flaws are completely unacceptable.

In 1995, Finnish computer scientist Tatu Ylönen witnessed these vulnerabilities and created the SSH (Secure Shell) protocol. SSH's core innovation: it establishes an encrypted tunnel between client and server. Even if packets are intercepted, the attacker can't read their contents.

SSH was rapidly adopted across the industry. It uses modern cryptography to defend against man-in-the-middle attacks, DNS spoofing, IP spoofing, and more — while providing rigorous identity verification. Just as importantly, SSH struck a balance between security and performance — built-in data compression kept it efficient even in bandwidth-constrained eras.

The SSH protocol itself has evolved:

• SSH-1: The first version solved the most urgent security problems of its time, but as cryptography advanced, weaknesses were discovered.
• SSH-2: The version everyone uses today. It uses stronger encryption and a more robust security design. Unlike SSH-1, SSH-2 was redesigned from the ground up — cleaner architecture, better extensibility.

Today, SSH is the de facto standard for remote server management, secure file transfer, and port forwarding.

• Linux / macOS: The OpenSSH client comes pre-installed. Just type ssh in your terminal.
• Windows: Win10/11 can add the OpenSSH client via "Optional Features," or use graphical tools like PuTTY.
• Server side: Virtually all UNIX-like systems come with the SSH daemon (sshd) pre-installed.

The basic command:

Real examples:

On your first connection, you'll see a prompt like this:

What this is telling you: "I've never connected to this server before, and it just showed me this fingerprint. Are you sure this is the machine you think it is?"

Type yes, and the server's host key gets saved to ~/.ssh/known_hosts. On subsequent connections, SSH automatically compares the fingerprint — if it has changed, something is wrong (likely a man-in-the-middle attack), and SSH will refuse the connection with a warning. That seemingly trivial "yes" is actually SSH's first line of defense against impersonation.

SSH provides two file transfer methods:

SCP (Secure Copy):

SFTP (SSH File Transfer Protocol):

Once connected, you can use FTP-like commands: put (upload), get (download), ls/lls (list remote/local files), cd/lcd (change remote/local directory).

SSH port forwarding creates what feels like a magical tunnel through the network:

Local Port Forwarding (-L): Maps a local port to a destination reachable from the remote host.

A classic use case — accessing an internal company database through a jump server:

Now connecting to localhost:3306 actually reaches db.internal:3306 on the internal network.

Remote Port Forwarding (-R): Maps a port on the remote server to a local service. Useful for letting someone on the internet reach a service running on your machine (e.g., a live demo).

Once connected, you have a remote terminal where you can run system commands:

Pro tips:

• sudo asks for your password, not root's.
• Use screen or tmux for long-running tasks to survive disconnections.
• Test dangerous commands with echo or --dry-run before executing for real.

While we only type a single command to establish an SSH connection, the engineering underneath is remarkably elegant. Let's dissect the mechanics.

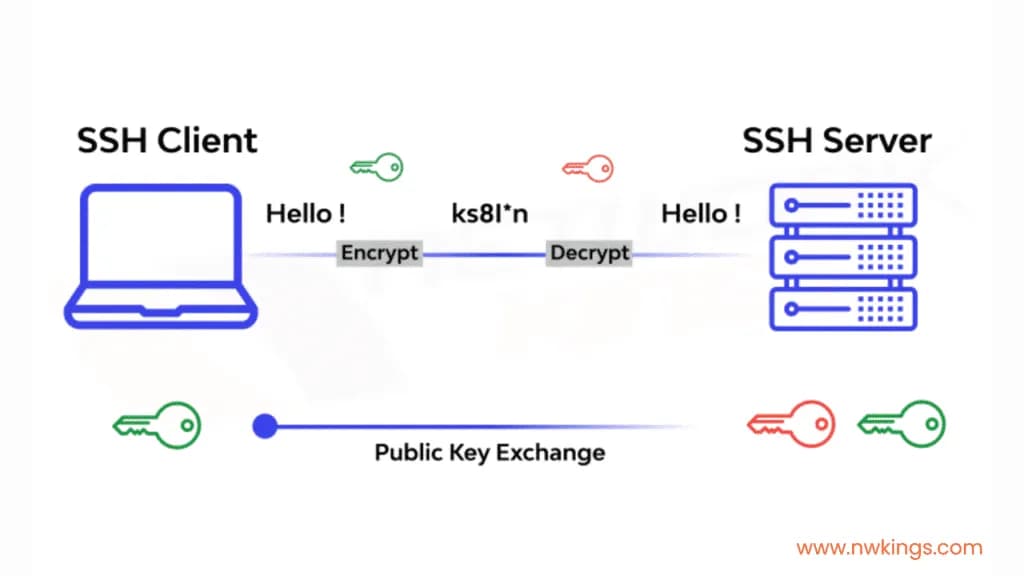

SSH's encryption is achieved through three layers working in concert, each with a distinct role:

Layer 1: Symmetric Encryption — The Fast Data Safe

Symmetric encryption is like a safe that uses the same key to lock and unlock. Both parties share one identical key for encryption and decryption.

When you type a command over SSH, the data is scrambled by a symmetric cipher like AES-256. Only the server — holding the same key — can unscramble it. Symmetric encryption is fast, making it ideal for real-time encryption of bulk data.

SSH generates a unique symmetric key (the session key) at the start of every connection. This key is valid only for that session — even if one session's key were somehow cracked, all other sessions remain safe. This "one key per session" design dramatically raises the security bar.

Layer 2: Asymmetric Encryption — The Secure Key Courier

But this raises a question: how do you safely deliver that first symmetric key to the other side? If you send it over the network in the clear, interception destroys everything.

Enter asymmetric encryption. It uses a pair of mathematically linked but unequal keys: a public key and a private key.

• The public key can be shared openly, like your email address.
• The private key must be kept absolutely secret, like your email password.

Data encrypted with the public key can only be decrypted with the corresponding private key. Data signed with the private key can only be verified with the corresponding public key.

During the SSH handshake (detailed below), asymmetric encryption is used to securely exchange the symmetric session key — elegantly solving the classic "key exchange" problem.

Layer 3: Message Authentication Code (MAC) — The Tamper-Proof Seal

Even if data is encrypted, an attacker could still attempt to tamper with packets in transit. The Message Authentication Code (MAC) exists to prevent this.

Before each packet is sent, SSH calculates a unique "digital fingerprint" and appends it. The receiver recalculates the fingerprint on arrival — if the data was modified along the way, the fingerprints won't match, and the connection is terminated immediately. Think of it as an anti-tamper seal on every envelope, guaranteeing data integrity.

How the three layers work together:

Now let's walk through the entire process. When you type ssh dev@10.0.1.55, here's what actually happens:

1. TCP Connection: The client completes a TCP three-way handshake with port 22 on the server. Refer to this series' TCP article:

2. Version Negotiation: Both sides exchange SSH protocol version strings, agreeing to use SSH-2.

3. Key Exchange: This is the most critical step. Using the Diffie-Hellman (or ECDH) algorithm, both sides independently compute the same symmetric session key — without ever transmitting the key itself across the network. Even if an attacker captures every single packet, they cannot derive the key. That's the mathematical magic of DH.

4. Host Authentication: The server signs a piece of data with its private key. The client verifies it using the public key stored in known_hosts. This is the underlying mechanism behind that fingerprint prompt you see on first connection — it ensures you're connecting to the real server.

5. User Authentication: The client proves its identity to the server. More on this below.

6. Encrypted Communication: Both sides use the session key from step 3 for symmetric encryption, with MAC protecting the integrity of every packet.

SSH supports multiple authentication methods. Here are the two most common.

Password Authentication — Classic but Imperfect:

While the password travels inside an encrypted tunnel, it's still vulnerable to brute-force guessing. In production, password auth is typically combined with login attempt throttling (fail2ban) and strong password policies.

Public Key Authentication — More Secure, More Convenient:

This is the recommended approach. It's both more secure and eliminates the need to type a password every time.

Step 1: Generate a key pair:

• -t ed25519: Use the EdDSA algorithm (faster and more secure than RSA)
• -a 100: Number of key derivation rounds — higher means harder to brute-force
• The private key is saved to ~/.ssh/id_ed25519 — permissions must be 600 (read/write for owner only)
• The public key is saved to ~/.ssh/id_ed25519.pub — can be freely distributed

Step 2: Copy the public key to the server:

This appends your public key to the server's ~/.ssh/authorized_keys file.

How the authentication works:

1. The client announces: "I want to use public key authentication."
2. The server generates random data, encrypts it with your public key, and sends it to you.
3. The client decrypts it with the private key, proving it holds the private key.
4. Authentication succeeds — passwordless login granted.

The core logic: possession of the private key = proof of identity. The public key can be shared freely; the private key never leaves your machine. It's analogous to registering your signature sample (public key) at a bank, and then signing on the spot (decrypting with private key) each time you transact.

1. If you have a server, generate an ED25519 key pair with ssh-keygen and set up passwordless login with ssh-copy-id.
2. Upload a file to a server using SCP, then download it back with SFTP. Compare the two experiences.
3. Inspect your local ~/.ssh/known_hosts file and understand the format of each entry.

4. Set up local port forwarding: start a simple HTTP server on the remote machine (python3 -m http.server 8000), then access it in your local browser via ssh -L.
5. Explore ~/.ssh/config: configure aliases, usernames, and key paths for your commonly used servers. Compare the conciseness of ssh commands before and after.

• What SSH solves: Establishing a secure, encrypted channel over an inherently insecure network, replacing plaintext protocols like Telnet.
• Three-layer encryption: Symmetric (fast bulk encryption) → Asymmetric (secure key exchange) → MAC (data integrity).
• How public key authentication works: You hold the private key; the server holds your public key. You prove your identity with the private key — which never leaves your machine.
• Daily toolkit: Remote login (ssh), file transfer (scp/sftp), port forwarding (-L/-R), ~/.ssh/config for managing connections.

Keywords: SSH, Secure Shell, Telnet, symmetric encryption, asymmetric encryption, public key authentication, Diffie-Hellman, SCP, SFTP, port forwarding, known_hosts

Congratulations — you've completed the journey.

We started at the very bottom, with a single network cable — how MAC addresses locate devices on a LAN, how ARP bridges IP and MAC. We climbed upward through IP routing, TCP/UDP transport, TLS encryption, DNS resolution, the HTTP protocol's evolution, caching strategies, WebSocket real-time communication, RPC for inter-service calls, and finally arrived at SSH — standing at the very top of the protocol stack, establishing a secure tunnel from your fingertips to any remote machine on the planet.

Looking back over the entire series, one thing becomes clear: networking isn't a tangled mess — it's a beautifully layered system where each tier solves one specific problem and the tier above depends on the capabilities provided below. Once you internalize this layered logic, any new networking technology (QUIC, HTTP/3, WebTransport...) becomes easy to grasp — because they're simply different implementations operating within the same framework.

Full series roadmap:
